Tejas Integral Connection
Inertia Welded Tool Joint, AND forged upset tubing
TTS-8 IS widely recognized in the industry, perfect for your production tubing and WORK STRING needs.
Introducing the TTS-8, a thread design connection that has earned its reputation in the industry, specifically crafted for optimal performance in production tubing and work string applications. With its innovative dual-step design on upset ends, you can experience seamless stabbing and make-up and exceptional galling resistance. Achieving remarkable efficiency with 100% tensile, 100% internal pressure, and 100% collapse capabilities, alongside robust torque strength, the TTS-8 guarantees a hassle-free connection suitable for a wide range of high-temperature and high-pressure scenarios.
30° Seal & Torque Stop
- External pressure with secondary internal pressure seal
- Torque Stop
90° Torque Shoulder
- Provides high torque strength
- Repeatability for multiple make-and-breaks
Threaded Form Design
- Non-interference thread form for excellent galling resistance
- The two-step thread design eliminates cross-threading, make-and-breaks
14° Primary Metal Seal
- 100% internal pressure rating of pipe body
- Corrosion inhibitor (CI) ring optional

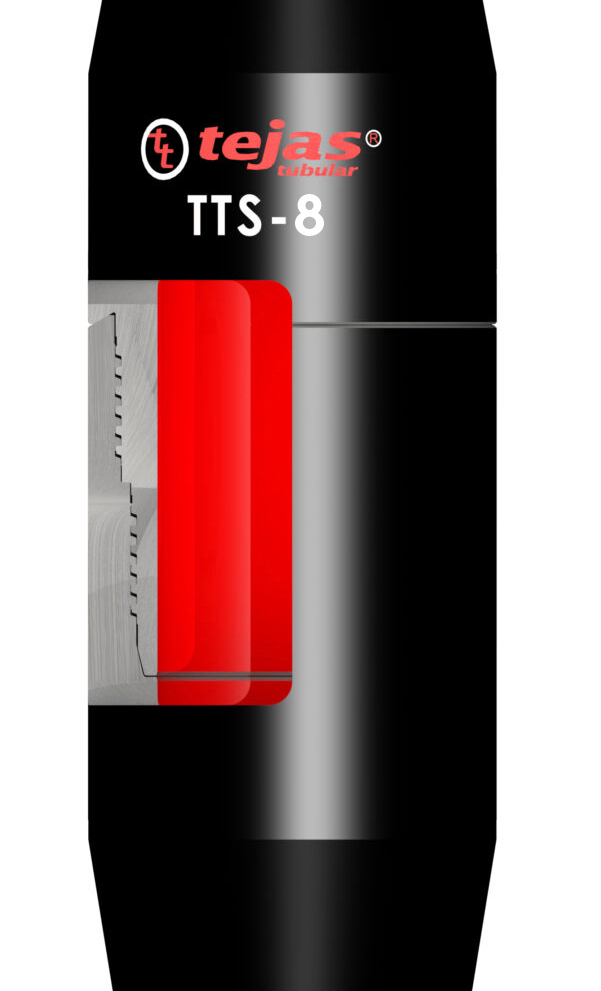

TTS-8 connection is an integral joint, eight threads per inch, two-step connection with upset ends, providing deep stabbing and quick make-up.
KEY BENEFITS
- Gas-tight
- High torque strength
- 100% efficiency under tension/ compression &
internal/external pressure - Deep stabbing
- Eliminates galling risk
- Reduced erosion corrosion
- CI option for H2S & CO2 environments
How it Works
Inertia Welding
- Lengths can be specific to customer requirements
- Hard banding was added for strength and durability
- Tejas Tubular controls all aspects of the manufacturing process
IJ UPSETTING
- Tubes are upset, and heat treated to the required grade with controlled length and added strength
- Essentially turns a 35’ pipe into a 32’ pipe by condensing and upsetting the ends
- Ability to create 8”-12” upsets (versus a limit of 7” for most competition) which provides more area for recuts to extend tool life
- Lengths can be specific to customer requirements
- Hard banding was added for strength and durability
- Tejas Tubular controls all aspects of the manufacturing process
TTS-8 SPECIFICATIONS
